特點: 專利Airloc冷焊插頭降低電阻, 發燒級99.999% OFC無氧銅

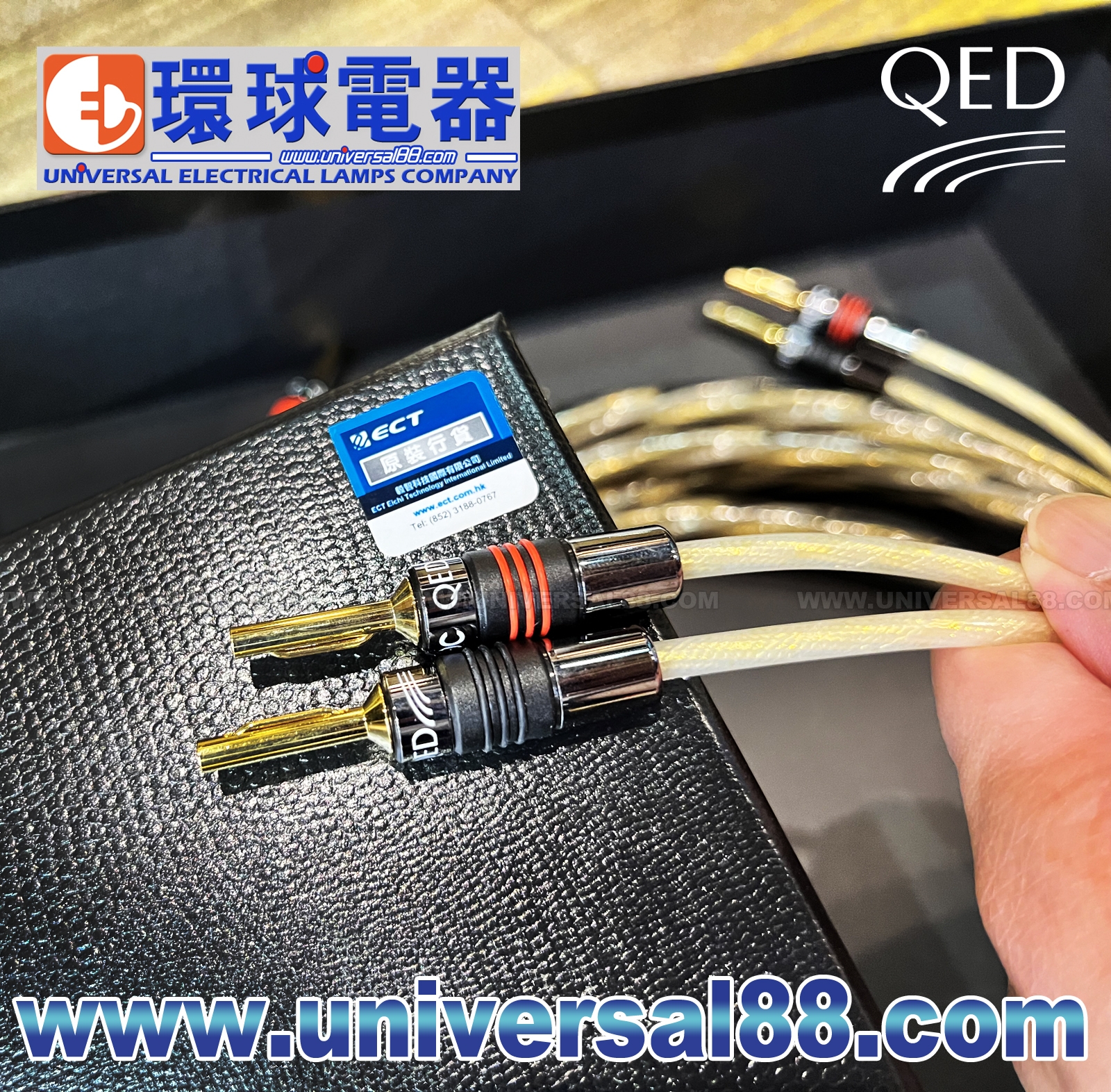

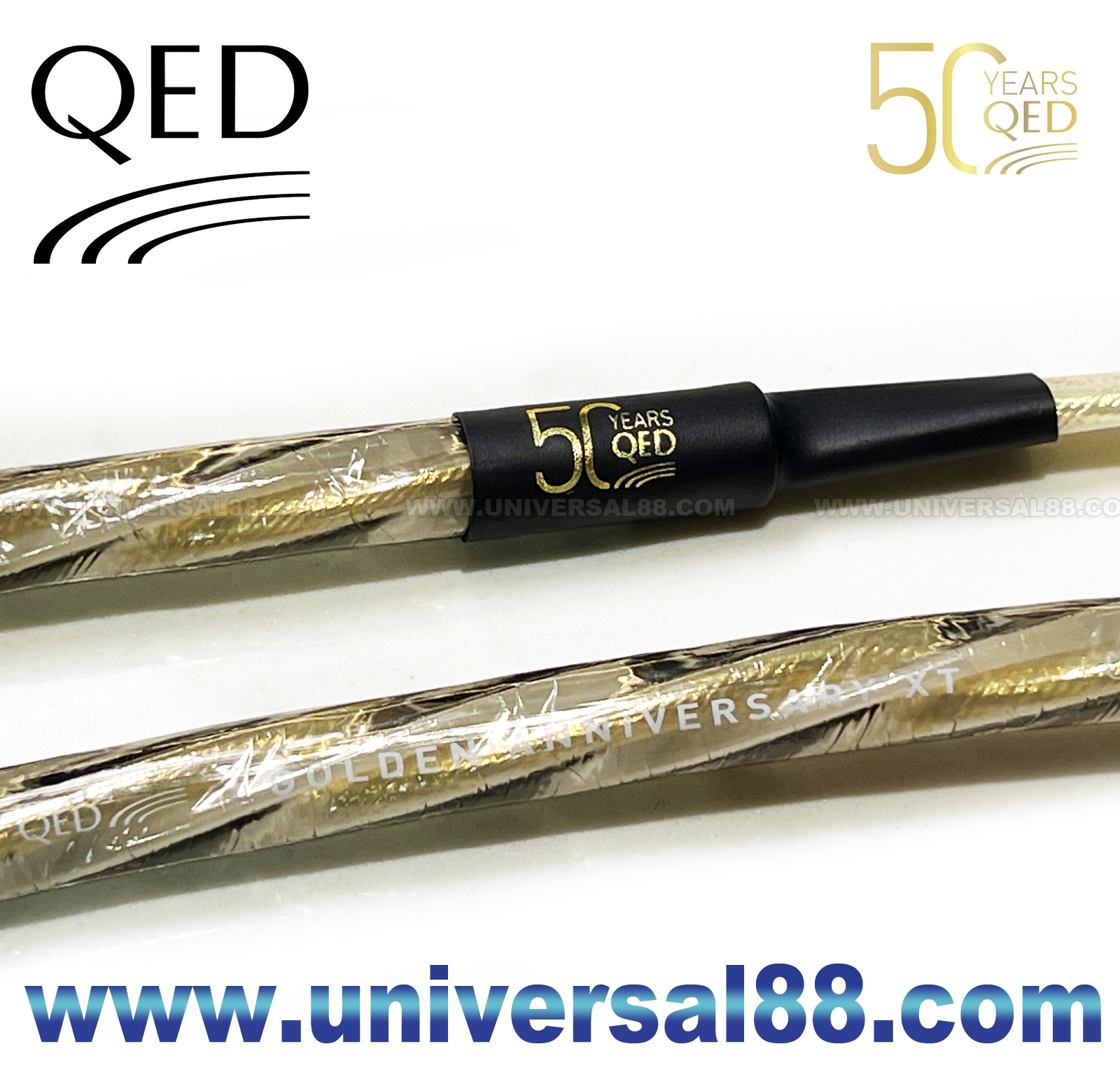

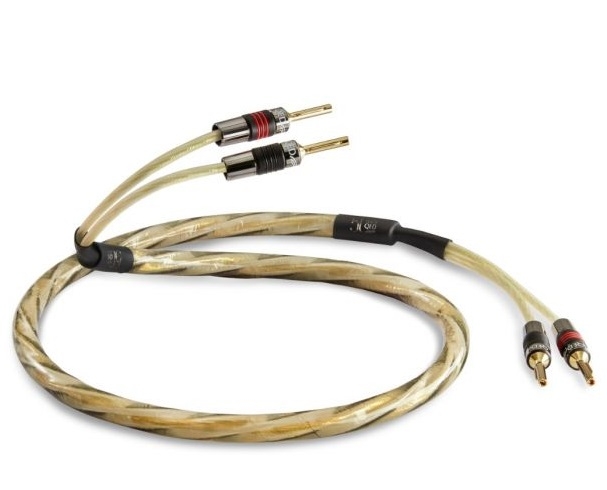

 英國QED Golden Anniversary XT
    2023年推出50週年單晶銅喇叭線+冷焊插頭(5'尺)
    為慶QED成立 50 週年, 推出50週年特別版喇叭線

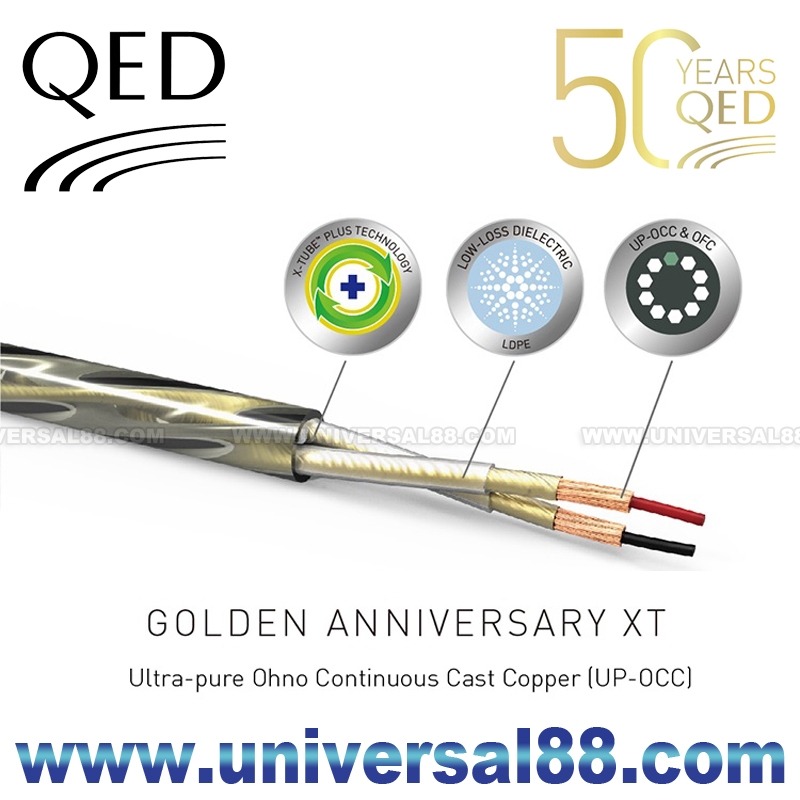

 最新 X-Tube Plus 技術, 進一步提升音樂感
 UP-OCC 單晶銅及 99.999% 無氧銅混合導體
 LDPE 絕緣, 提高效率並減少訊號損失
 專利 Airloc 冷焊插頭，提高接觸面積並降低電阻
 環路電感0.58μH/m
 迴路電阻 14.8 mΩ/m
 電容 42.0 pF/m
 損耗因數@10kHz 0.0090
 導體 9 x 19/0.13 mm OFC + 1 x 19/0.13 mm UP-OCC
 絕緣 LDPE 護套 100% 覆蓋金​​色/聚酯薄膜膠帶包裹
 Golden Anniversary XT 揚聲器電纜代表了
    五年來專注和廣泛的研究, 工程和音頻專業知識
    的巔峰, 對於任何想要體驗高端揚聲器電纜的
    聲音優勢的高保真發燒友來說, 它是理想的升級產品,
    但價格低廉真實世界價格
 相較於鍍銀且橫截面更大的 QED XT400 喇叭線,
    Golden Anniversary XT 的聲音更加集中, 可以更輕鬆地
    定位音場中的特定樂器, 而且低音瞬態方面尤其出色,
    與所有三款 X-Tube™ 喇叭線性質相似, 但在高音細節和
    立體感方面更為出色, 令人印象深刻
 QED Golden Anniversary XT
 Plugs and spades QED Airloc™ Forte banana plugs
 Loop inductance 0.58 μH/m
 Loop resistance 14.8 mΩ/m
 Capacitance 42.0 pF/m
 Dissipation factor @ 10 kHz 0.0090
 Conductors 9 x 19/0.13 mm OFC
    + 1 x 19/0.13 mm UP-OCC
 Insulation LDPE jacket with 100% coverage
    of golden/mylar tape wrap
 QED celebrates 50 years with a special
    edition speaker cable
 QED celebrates its 50th anniversary in style,
    with the introduction of its Golden Anniversary
    XT speaker cable. Representing the culmination
    of five decades of dedicated and extensive
    research, engineering and audio expertise,
    Golden Anniversary XT speaker cable is the
    ideal upgrade for any hi-fi enthusiast who wants
    to experience the sonic benefits of a high-end
    speaker cable - but at a real-world price
 Five decades of audio engineering pedigree
 QED has been designing and engineering
    class-leading and award-winning analogue and
    digital cables for five decades - and the
    Golden Anniversary XT is the latest demonstration
    of the company's expertise.
 Quality Electronic Design (QED) was formed in
    1973 by forward-thinking hi-fi enthusiasts,
    Bob Abraham and Ian Vine. The company is now
    considered the original cable brand, having
    released QED 79 Strand, widely recognised as
    the world's first “specialist” loudspeaker cable.
 This product demonstrated how cables could
    have a tangible impact on audio performance.
 QED's Genesis Report on loudspeaker cable
    design followed. This research established
    scientifically proven principles, which are as
    valid today as they were 28 years ago and
    informs all QED cable designs, including the
    pioneering X-Tube™ technology that enables
    precise and consistent signal delivery across
    the entire frequency range.
 Cross-sectional area 2.5 mm2
 Wire gauge 14 AWG
 Jacket outside diameter 11.5 mm
 插頭和鏟子 QED Airloc™ Forte 香蕉插頭
 截面積2.5平方毫米
 線規 14 AWG
 護套外徑 11.5 mm 毫米
 線長5'尺
 包括2條5'尺喇叭線及QED禮盒一個

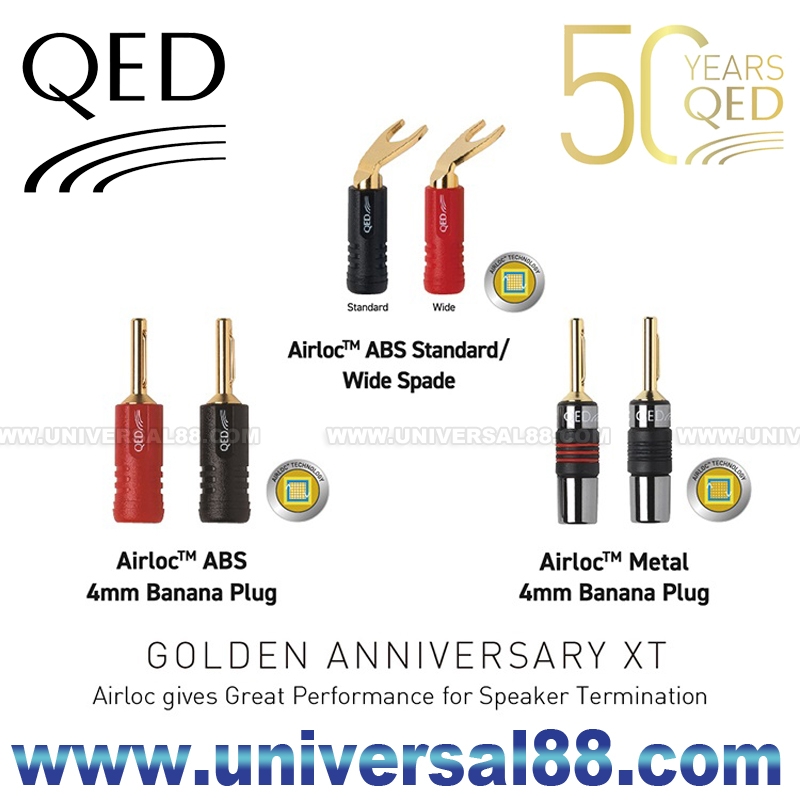

 插頭選擇:

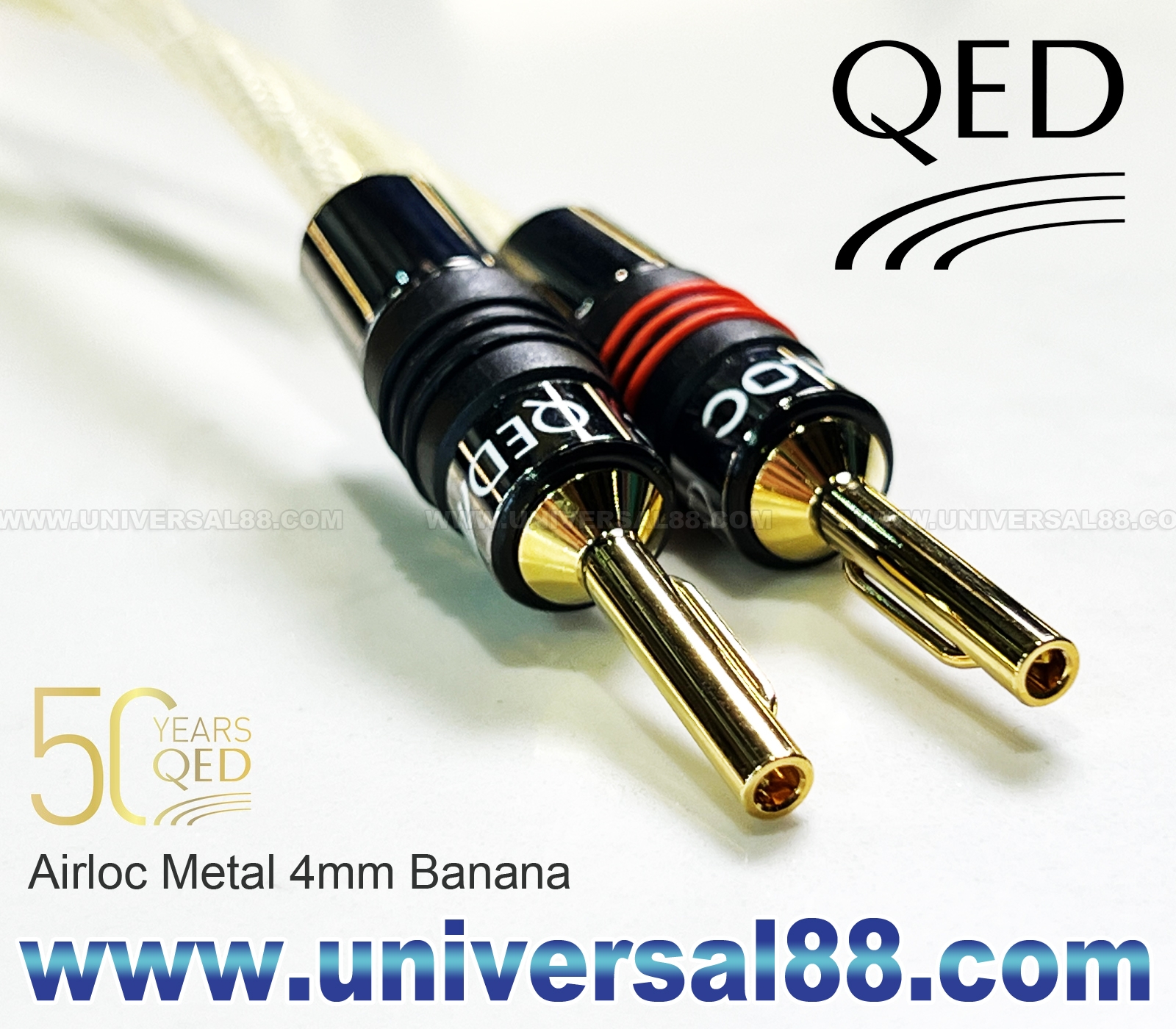

    QED Airloc Metal 4mm 金屬殼蕉插(Airloc Metal Banana)
    QED Airloc ABS 4mm 蕉插(Airloc ABS Banana)
    QED Airloc ABS 標準叉插(Airloc ABS Spade Standard)
    QED Airloc ABS 大叉插(Airloc ABS Spade Wide)
自定長度及插頭服務, 訂製此產品只供訂購:
訂購需時約5~8個工作天, 實際情況會因應廠方訂單情況或會延遲
