ADAM S3V
德國立體聲監聽揚聲器

(採用 9" HexaCone低音單元)
(3組獨立功率放大器共850W)
(德國手工製S-ART高頻單元)
分期付款:
每月HKD $2,340 (共24個月)
LASTUPDATE: 31-10-2024

HKD $~~53,600~~
{最新型號}
{特價發售}

HKD $51,990

產品備註 :

特點: 採用9"碳纖維低音單元, 手工製S-ART高頻單元, 內置3組獨立功率放大器

原廠一年保用

ADAM S3V Active Studio Monitor 監聽喇叭

德國手工製作的S-ART高頻單元

9"低音單元(HexaCone)

4"中音單元(Carbon Composite) (60 mm)

2"高音單元Equiv. Diaphragm (56 mm)
4" Inch² (2420 mm²)

功放功率850瓦(額定功率)

內置3個850W RMS 功放
AMP Woofer: 500W RMS
AMP Mid-Range: 300W RMS
AMP Tweeter: 50W RMS

頻率響應: 32Hz - 50kHz

Tweeter Level : ± 4dB

High Shelf EQ: > 5 kHz ±6 dB

Low Shelf EQ: < 300 Hz ±6 dB

Input Sensitivity: -∞ to +14 dB

每對音箱在1米處測得的最高聲壓級124 dB

S3V是ADAM Audio現在生產的大型音箱,

非常適用於各種空間較小, 但是對音質要求很高的環境

採用ADAM著名的S-ART 4"寸高頻單元,

可以提供水晶般清澈的音質

採用了9"寸低頻單元, 振膜使用了質量很輕,

可以提供完全無染色的聲音

立體聲鏈接

S3V音箱具有一個非常重要的技術特徵:

立體聲連接功能

這個音箱上有額外的RCA接口,

可以旁路立體聲信號中的一個聲道, 送到另外一隻音箱上

這項新的技術可以將兩隻S3V音箱連接在一起,

通過一隻音箱的增益旋鈕, 來控制整體的立體聲信號

監聽的總體音量很容易被控制,

整個系統完全摒棄了額外的音量控制調音台

The S3V is a three-way studio monitor
optimized for vertical use and designed
primarily for midfield applications, although
it may also be used in more compact
listening environments.

Bass frequencies from 32Hz to 250Hz
are handled by ADAM Audio’s entirely
new 9-inch Extended Linear Excursion
(ELE) LF driver, which incorporates the
company’s equally groundbreaking
Symmetrical Magnet Assembly (SMA)
and delivers a powerful, extremely
accurate low end extending right down
into the sub-bass region. Mid-range
and HF information is reproduced with
equally analytical precision thanks to
the combination of ADAM Audio’s newly
developed 4-inch DCH mid-range driver
and the highly refined S-ART folded-ribbon
HF driver. Together with the brand-new
HPS waveguide, the latter offers
high-frequency reproduction with an
extremely broad sweet spot with fine,
highly detailed imaging and a
natural-sounding sense of depth.

German Handmade Precision

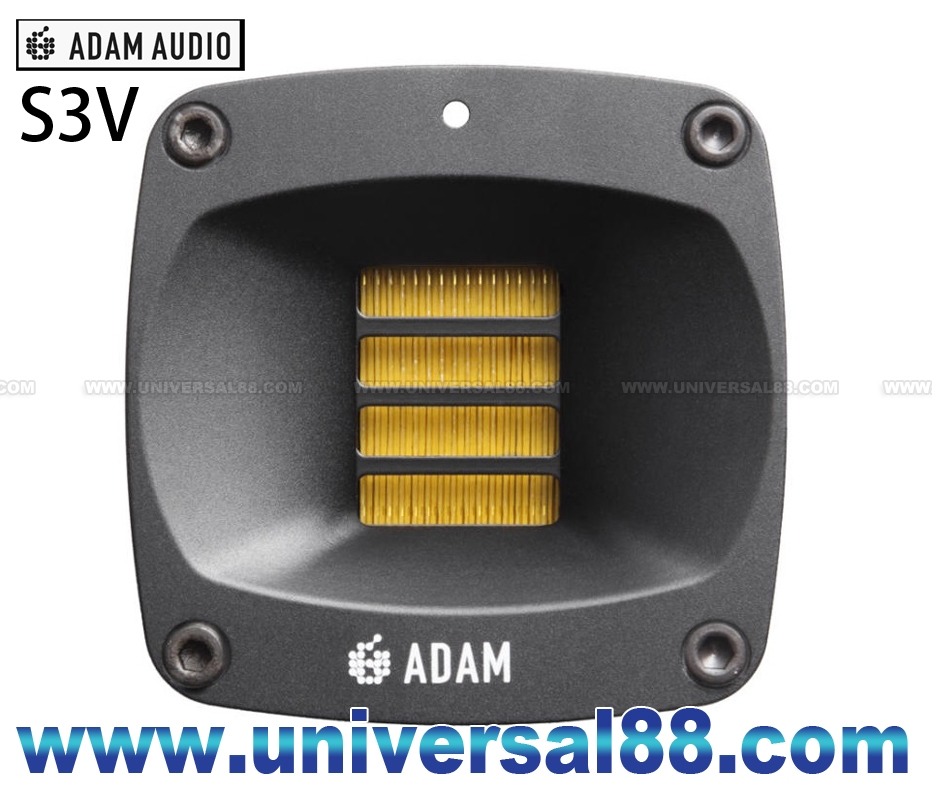

S-ART Tweeter with HPS Waveguide

2" Equiv. Diaphragm Ø 2" (56 mm) 4"inch² (2420 mm²)

4" Dome / Cone Hybrid (Carbon Composite)

9“ Woofer (Hexacone)

Cumulated Amp. Power RMS: 850W

電壓: 100~240V 50/60Hz 550W

1組StereoLink輸入

1組StereoLink輸出

1組RCA XLR平衡輸入

1組XLR平衡輸入

尺寸: W293 / H536 / D380 mm

重量: 25.0 kg
