Cocktail Audio X35 (黑色)
CD DAC 高級串流擴音機

(大功率 100W+100W 擴音機)
(內建CD可直接Rip CD到硬碟)
(無線網路,串流播放手機或Pad)
(支援Apple iOS & Android)
(Rip CD檔自動搜尋封面圖檔)
分期付款 :
每月HKD $535 (共24個月)
送原廠Wi-Fi USB DONGLE
LASTUPDATE: 31-05-2024

HKD $~~14,800~~
{最後清貨}
{特價發售}

HKD $11,840

產品備註 :

特點: 內置200W擴音機, 更能直接Rip CD成數位檔, 還會自動搜尋封面圖檔

原廠一年保用

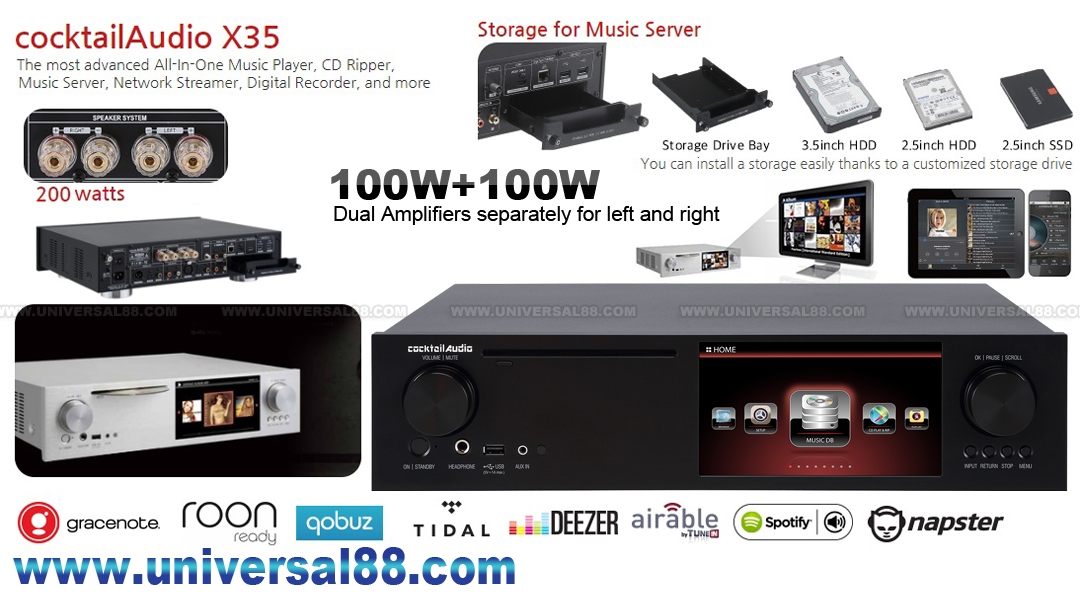

Cocktail Audio X35 CD DAC 高級串流擴音機

對比上一代X30係聲音同功能上全面進化

一台音響可以作為"音樂伺服器", "CD Ripper",
"音樂檔案及CD播放器", "網絡串流播放器",
"數碼錄音功能"

CPU加強至Dual Core ARM Cortex A9,
運算速度大幅提升

DAC解碼部分是ESS ES9018K2M Sabre³²,
音質好之餘也支援到DSD 64/128/256,
DXD 24Bit/352.8Khz , PCM 32Bit/384Khz

輸出功率高達 200 Watts, 足夠推動座地喇叭

將黑膠轉錄至音樂檔案

顯示螢幕: 7" Inch TFT LCD(1024 x 600 pixels)

內置DAB+/FM天線功能,
可以直接收聽電台廣播

內置硬碟最大支援 8TB（3.5"/2.5" SATA 和 SSD)

音響級大型環牛

支援網絡串流服務TIDAL, Deezer, Qobuzm

支援網絡電台

極全面的音樂檔案格式支援:
HD FLAC (24Bit/192KHz),
HD WAV(24Bit/192KHz),
APE/CUE, WAV, FLAC, ALAC, AIFF,
AIF, AAC, M4A, MP3, Ogg Vorbis,
PCM, M3U, PLS, etc

HDMI輸出到電視

手機App完全操控播放

cocktailAudio X35

Host CPU & Memory:

CPU: Dual Core ARM Cortex A9 running at 1.0GHz

Main Memory: DDR-1066 1GByte

EMMC 8GByte

Front Loading CD Player

Supported media: CD, CD-DA, CD-R, CD-RW, DVD-R/RW

Display: 7.0" TFT LCD(1,024 x 600pixels)
(* able to connect to ext. screen via HDMI out)

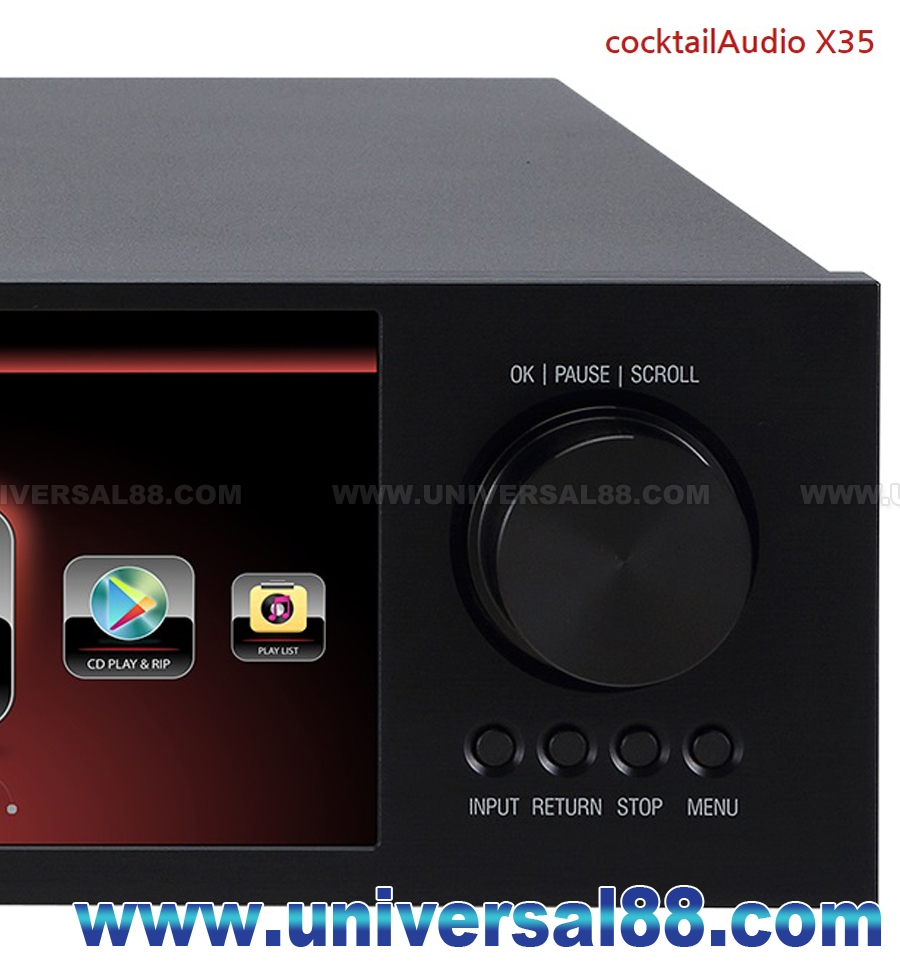

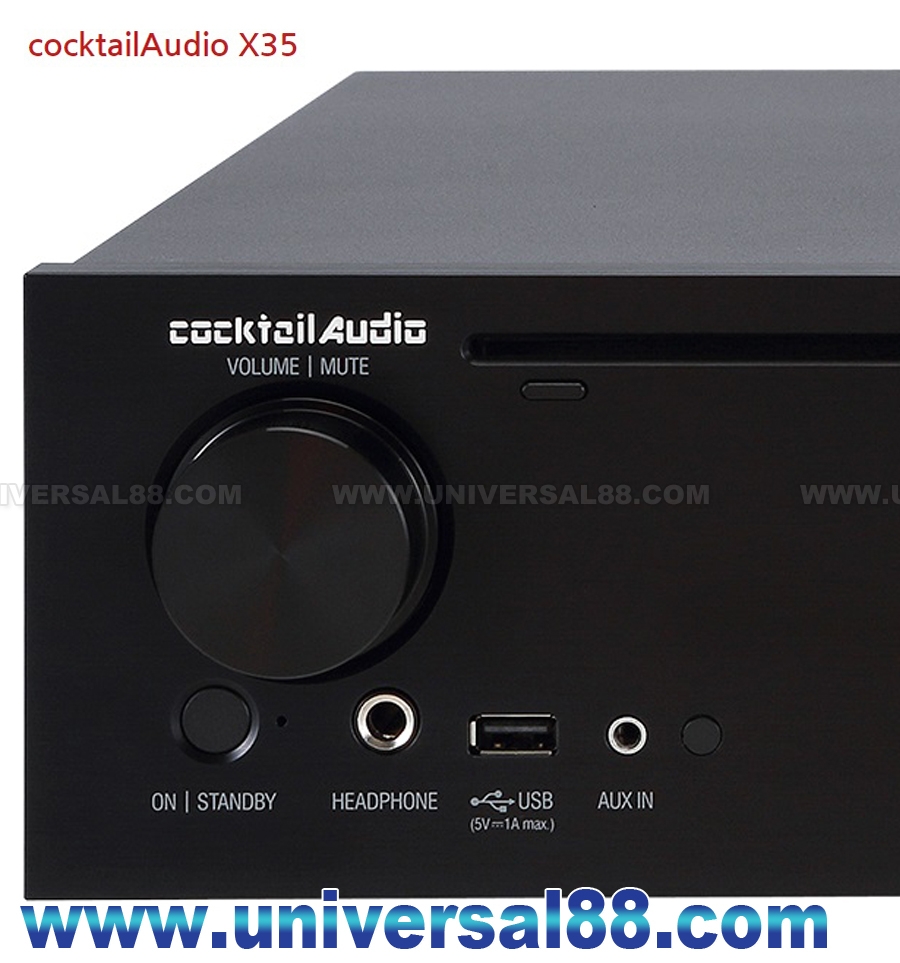

Interface: Key & Jog(Volume/Scroll),
IR Remote Control, Customized Remote App
for iOS and Android devices, Web Interface

Amplifier (Speaker Out) Rated output:
100W+100W @ 1Khz, 8ohm, 0.1% THD(Total 200 watts)

(Dual Digital Amplifiers built-in separately for left and right)

Analog Out

(Sabre³² ES9018K2M DAC) PRE-OUT (L&R RCA) L&R RCA,
Dynamic Range: 127dB(Max 2Vrms, Stereo) THD+N: 0.0004%

Headphone Out 6.35mm Jack:
100mW+100mW@1Khz, 600ohm, 0.1% THD

Digital out (Variable/Fixed):

COAXIAL x 1 S/PDIF 75ohm RCA,
Sample rate: up to 24bit/192KHz

TOSLINK x 1 S/PDIF, Sample rate: up to 24bit/192KHz

AES/EBU/XRL x 1 110ohm,
Sample rate: up to 24bit/192KHz

USB Audio x 1 USB Audio Class 2.0 Output

HDMI Out x 1 HDMI Audio Out
(*Shared withHDMI Out for external screen)

Analog Input (Sensitivity) LINE In x 1 L&R RCA
at the rear, default 2Vrms(controllable 1~4Vrms)

Aux In x 1 3.5mm Phone Jack on the front,
default 1Vrms(controllable 0.5~2Vrms)

Phono In x 1 MM Input, default 7.5mVrms
(controllable 3.75~15mVrms)

Digital Input: COAXIAL x 1
Sample Rate: up to 24bit/192Khz

TOSLINK x 1 Sample Rate: up to 24bit/192Khz

AES/EBU/XLR x 1 Sample Rate: up to 24bit/192Khz

Supported Storage:

Hard Disk:

2.5" SATA, up to 2TB

3.5" SATA, up to 8TB

SSD: 2.5" SATA, up to 2TB

TUNER:
DAB+/FM Radio Selectable for DAB/DAB+ or FM Radio

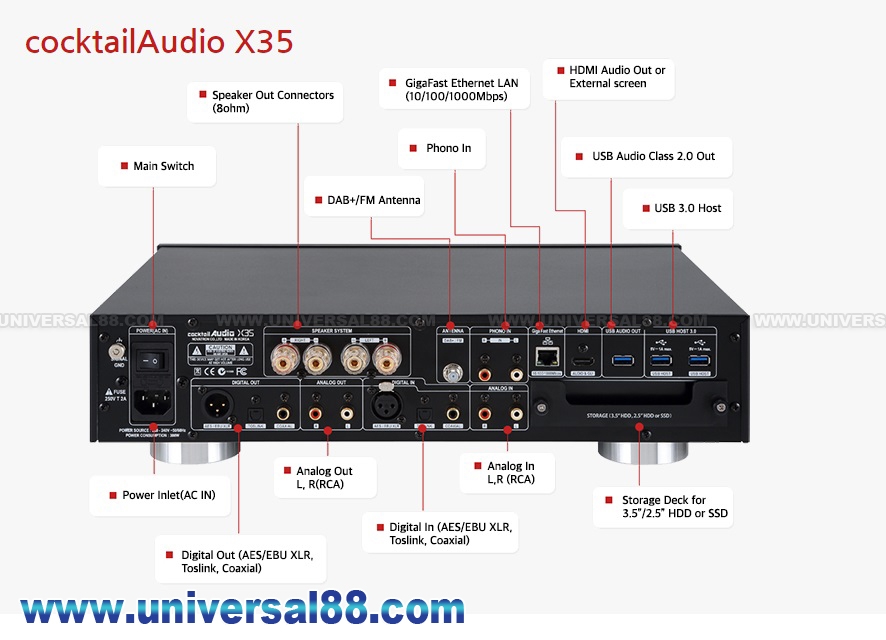

Connectivity:
USB Host USB3.0(5V/1A) x 3 at rear
(One is shared for USB Audio Out)

USB2.0(5V/1A) x 1 at front

Network Wired: Giga Fast Ethernet (10/100/1000Mbs)

Wireless(Option): 802.11b/g/n WiFi USB dongle(Option)

HDMI Out: Connect to external screen
(* Shared with HDMI Audio Out)

Codec & Format supported:
DSD(DSD64, DSD128, DSD256),
DXD(24Bit/352.8KHz),
HD WAV(24Bit/192KHz),
HD FLAC(24Bit/192KHz),
APE/CUE, WAV, FLAC, ALAC,
AIFF, AIF, AAC, M4A, MP3, WMA,
Ogg Vorbis, PCM, M3U, PLS, etc

Equipped with high-performance
Dual Core ARM Cortex A9 processor running at 1.0Ghz

ESS ES9018K2M Sabre³² Reference DAC built-in

Combined with two(2) separate high-performance
Class D Amplifiers for left and right with total 200 watts

Isolated power source circuit design for
digital and analogue parts

Toroidal transformer to minimize idle noise

High speed optical disk drive for quick CD ripping

7 inch TFT LCD(1024 x 600 pixels) screen for intuitive GUI

DAB+/FM Tuner built-in

Giga Fast Ethernet(10/100/1000Mbps) built-in

Support up to 8TB(Tera Bytes)
storage like 3.5"/2.5" hard disk or SSD

Rugged chassis contruction with
13mm thickness aluminum front and
knobs with CNC cutting

HDMI Out connector for using an external
screen like TV as its GUI screen

Support various file formats like DSD(64/128/256),
DXD(24Bit/352.8Khz), PCM singal up to
32Bit/384Khz including 24Bit/192Khz
WAV/FLAC and full range hi-res audio file formats

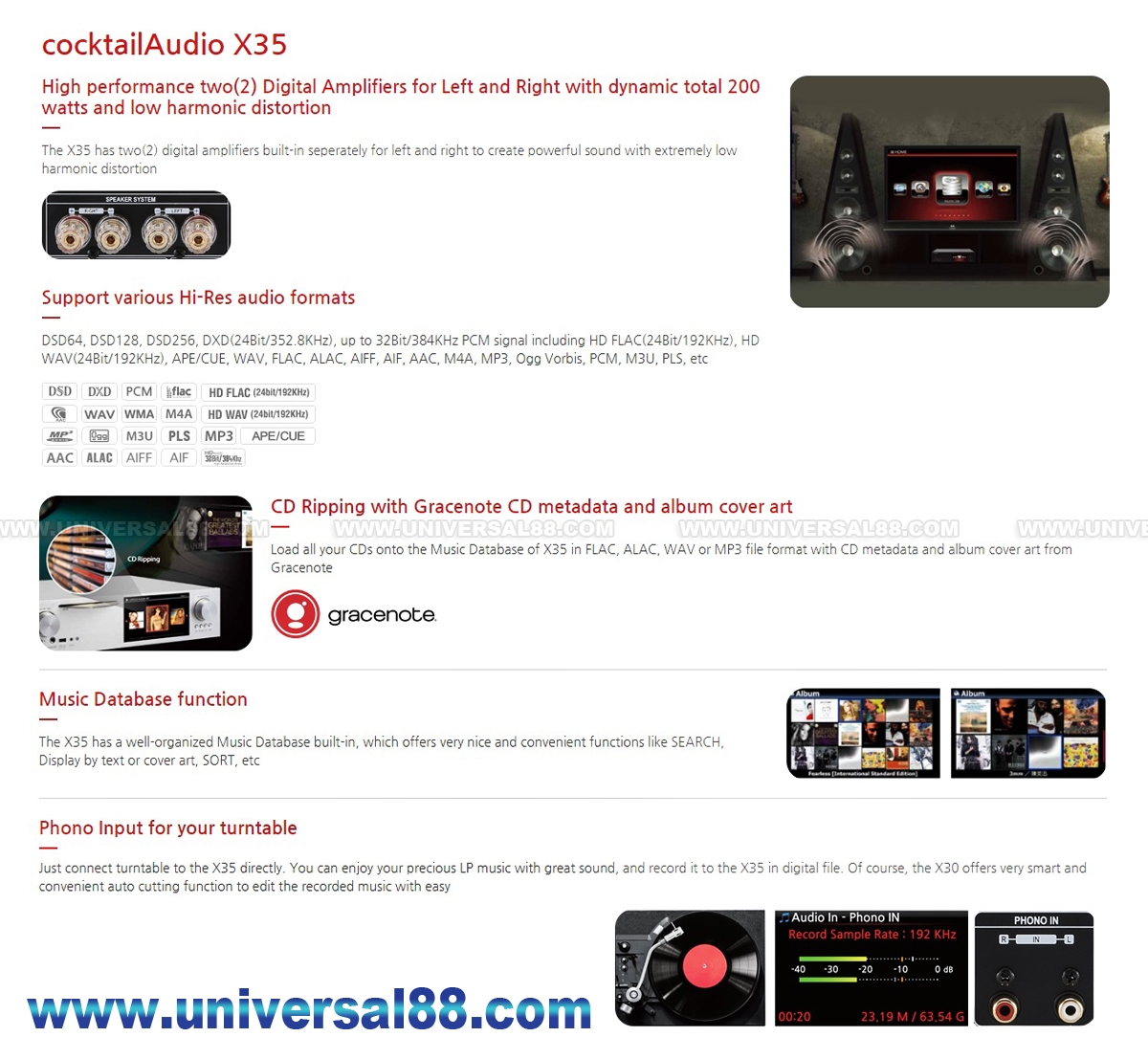

Breathtaking sound quality delivered by
ES9018K2M Sabre³² Reference DAC

CD Ripping with professional CD metadata and
album cover art provided by Gracenote

Phono Input(Moving Magnet) for Turntable.
Play LP directly and record it

Recording function with hi-res sampling rate 192Khz

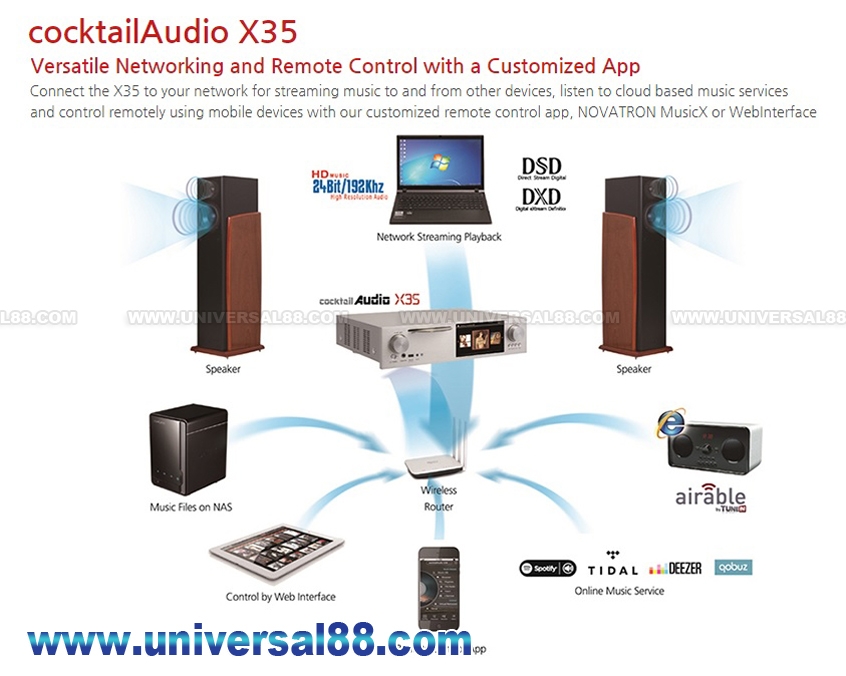

High Connectivity

Versatile network functions

Major Music Streaming Services
(TIDAL, Deezer, Qobuz) and Internet Radio available

Customized Remote Control App,
NOVATRON MusicX for iOS and Android

Provides customized WebInterface(WebUI) for
remote control and MusicDB management by PC

Support 'Roon Ready', which is the famous
Music Player for Music Lovers

電壓: 220V-240V 50/60Hz

尺寸: W441 / H100 / D330mm (連腳尺寸)
