原廠一年保用
英國Audiolab 6000CDT CD Player播放機
播放光碟: CD, CD-R/RW
Digital Output Voltage Level: 600±50mVpp
Frequency response: <0.01dB @ 20-20kHz
Output Impedance: 75±1Ω
Max Sampling Rate: 44.1 kHz
6000CDT是一種專用的播放CD的播放器,
採用與audiolab的旗艦CD播放器8300CD
相同的插槽加載機制
傳統CD機內置有解碼, 令音訊容易被干擾,
針對此問題, Audiolab推出CD轉盤6000CDT,
參考同廠旗艦機8300CD
採用插槽式加載設計Slot-loading mechanism,
配合預讀數碼緩衝器read head digital buffer,
能有效減低光頭讀取CD數據時的障礙,
就算播放表面有花痕或損壞了的CD都難不到它,
可稱為防跳線CD讀碟王
主時鐘採用溫度補償晶體振盪器
temperature-compensated cystal oscillator控制,
以確保不論音訊以光纖或同軸輸入,
都能減少時基誤差。機面設有吸入式碟盤,
兼播CD、CD-R/RW
同時支援20Hz~20kHz頻率響應及低於0.005%
的諧波失真, 難怪音色如此乾淨

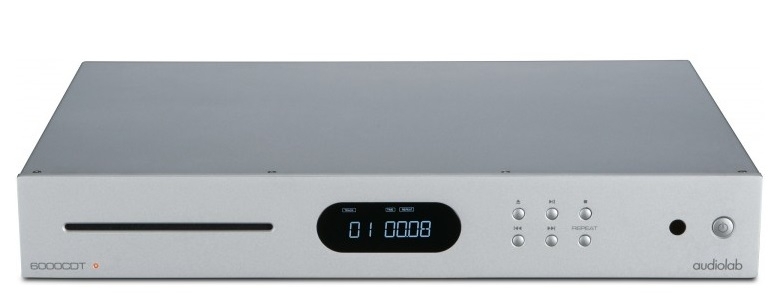

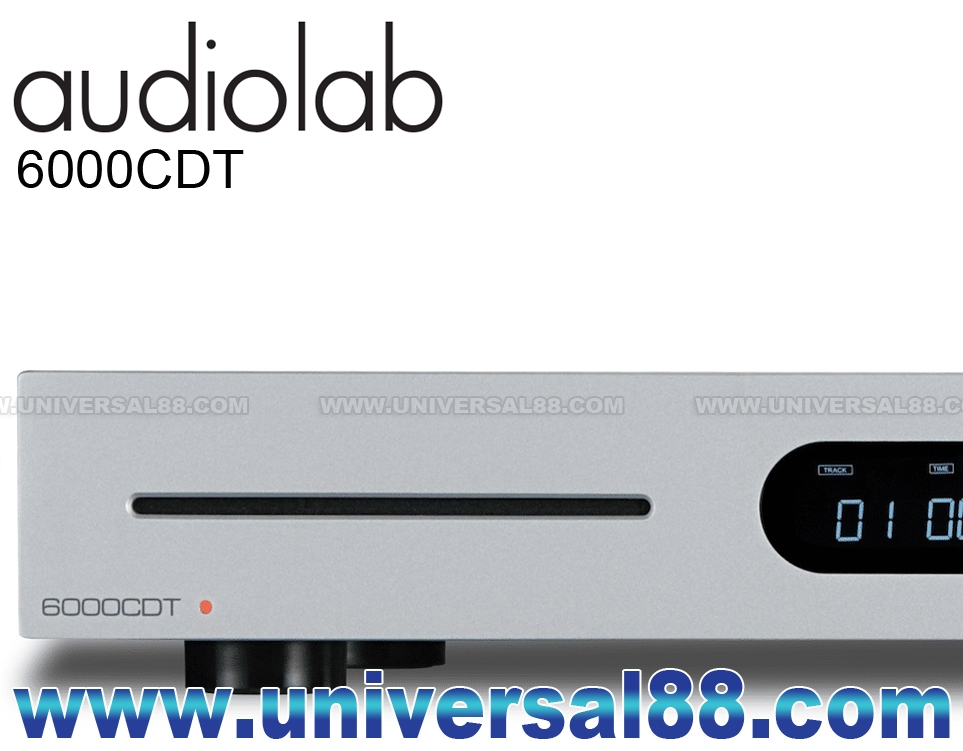

Audiolab 6000CDT CD Player
The Sound of Science:
The 6000CDT is the latest CD transport from
audiolab. Using audiolab's slot loading
mechanism, the transport uses read-ahead
digital buffering to reduce disc reading failures
and deliver the highest level of digital signal
extraction from a wide range of CDs, even
capable of reading scratched and damaged
CDs that are unreadable by conventional
mechanisms. The onboard digital decoder
utilises digital coax and optical outputs
to deliver the maximum versatility.
The master clock is controlled by a
temperature-compensated crystal oscillator,
enabling the digital output from both coaxial
and optical sockets to exhibit vanishingly
low levels of jitter (digital distortion).
In addition, the coaxial output is fed from a
differential line driver to ensure a flawless
digital signal reaches the accompanying
DAC – naturally, the 32-bit DAC section in
the 6000A integrated amp is a superb
sonic match.

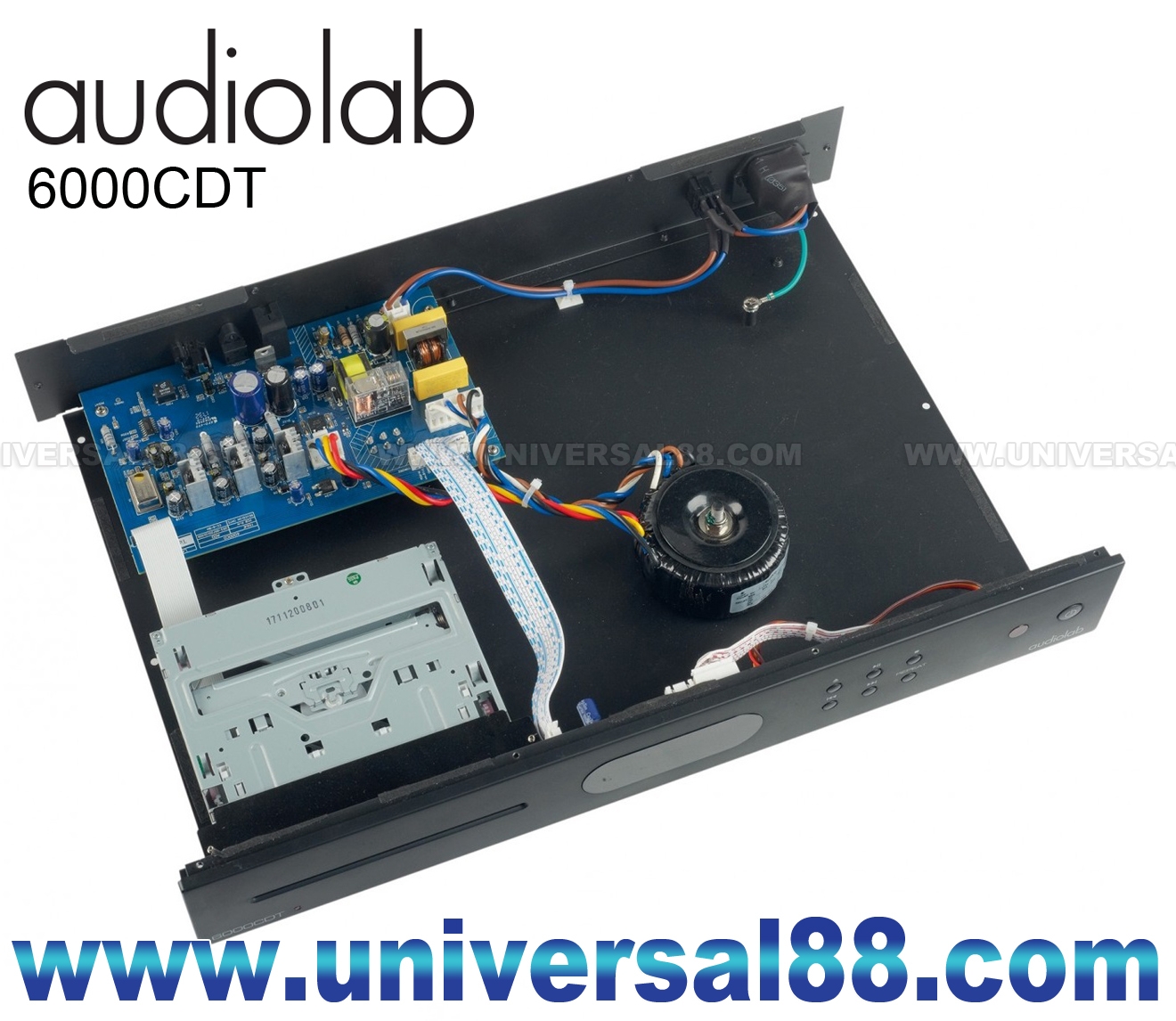

By mounting the transport in its own,
electromagnetically shielded enclosure,
and including a dedicated power supply,
the digital signal extraction from any CD
is as accurate and precise as it is possible
to achieve.

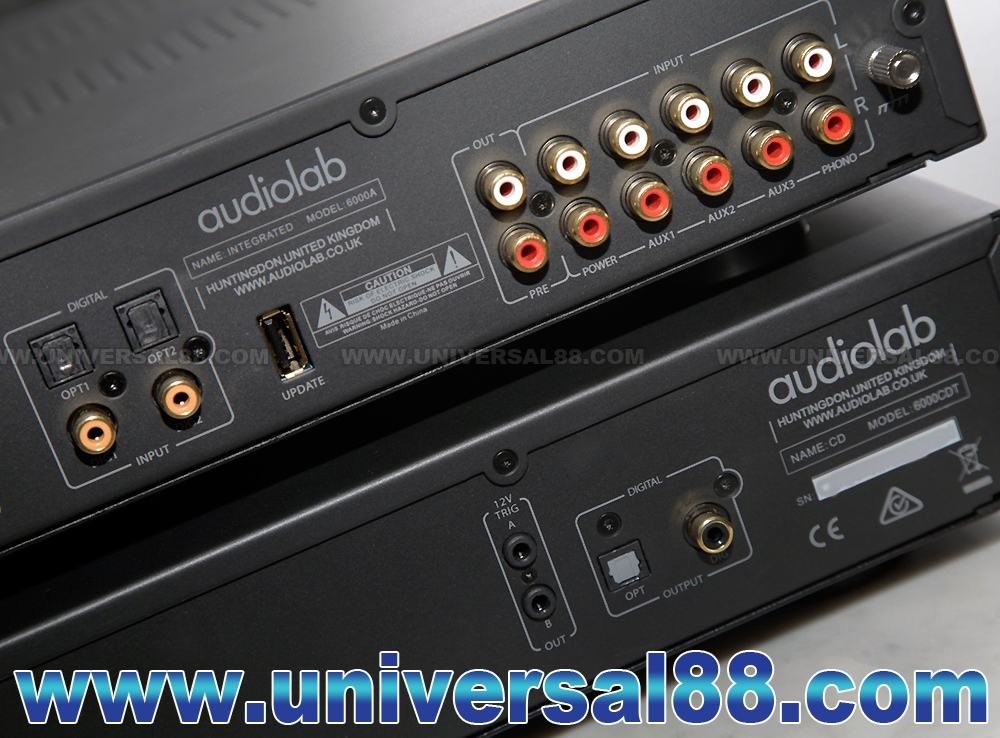

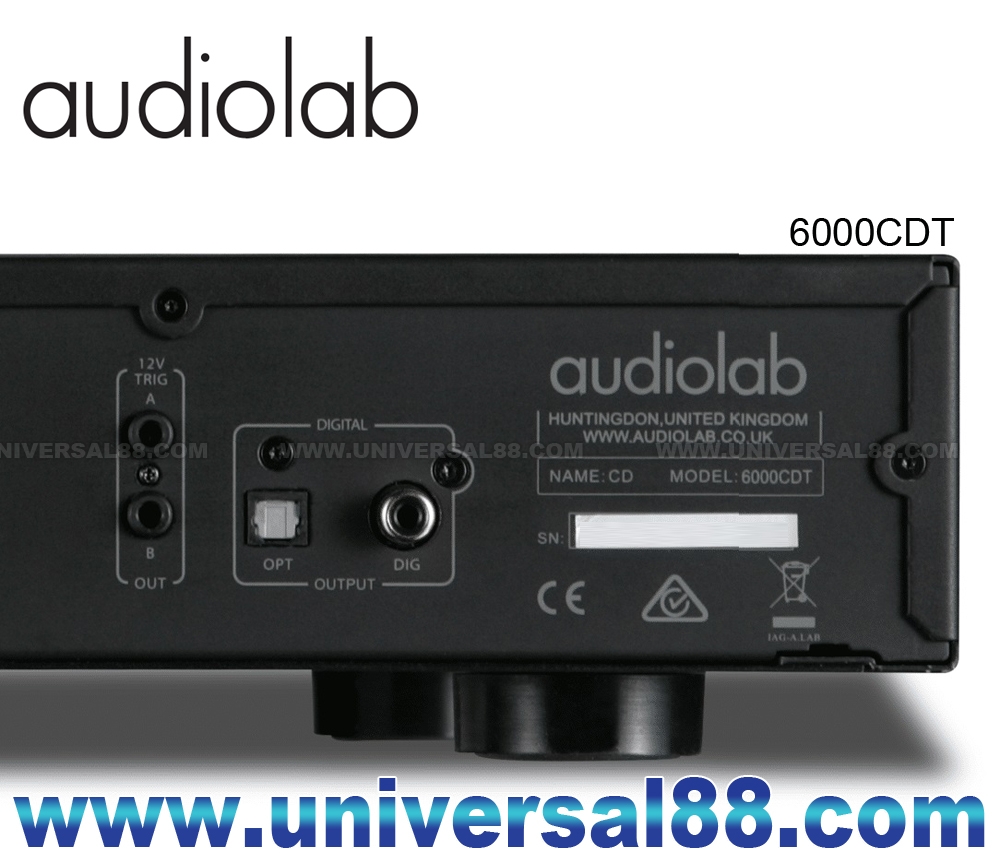

背設有總開關掣(On/Off Switch)
1組數碼同軸輸出(COAXIAL)
1組數碼光纖輸出(OPTICAL)
1組12V TRIG (A OUT)
1組12V TRIG (B OUT)
電壓: 220~240V~50/60Hz 15W Standby 0.5W
尺寸 W445 / H66.5 / D300 mm
重量: 5.4 kg
顏色: 銀色(Silver)
另有 黑色(Black) 可供選擇
特點: 支援20Hz~20kHz頻率響應及低於0.005%的諧波失真
