特點: 專利Airloc冷焊插頭降低電阻, 發燒級99.999% OFC無氧銅

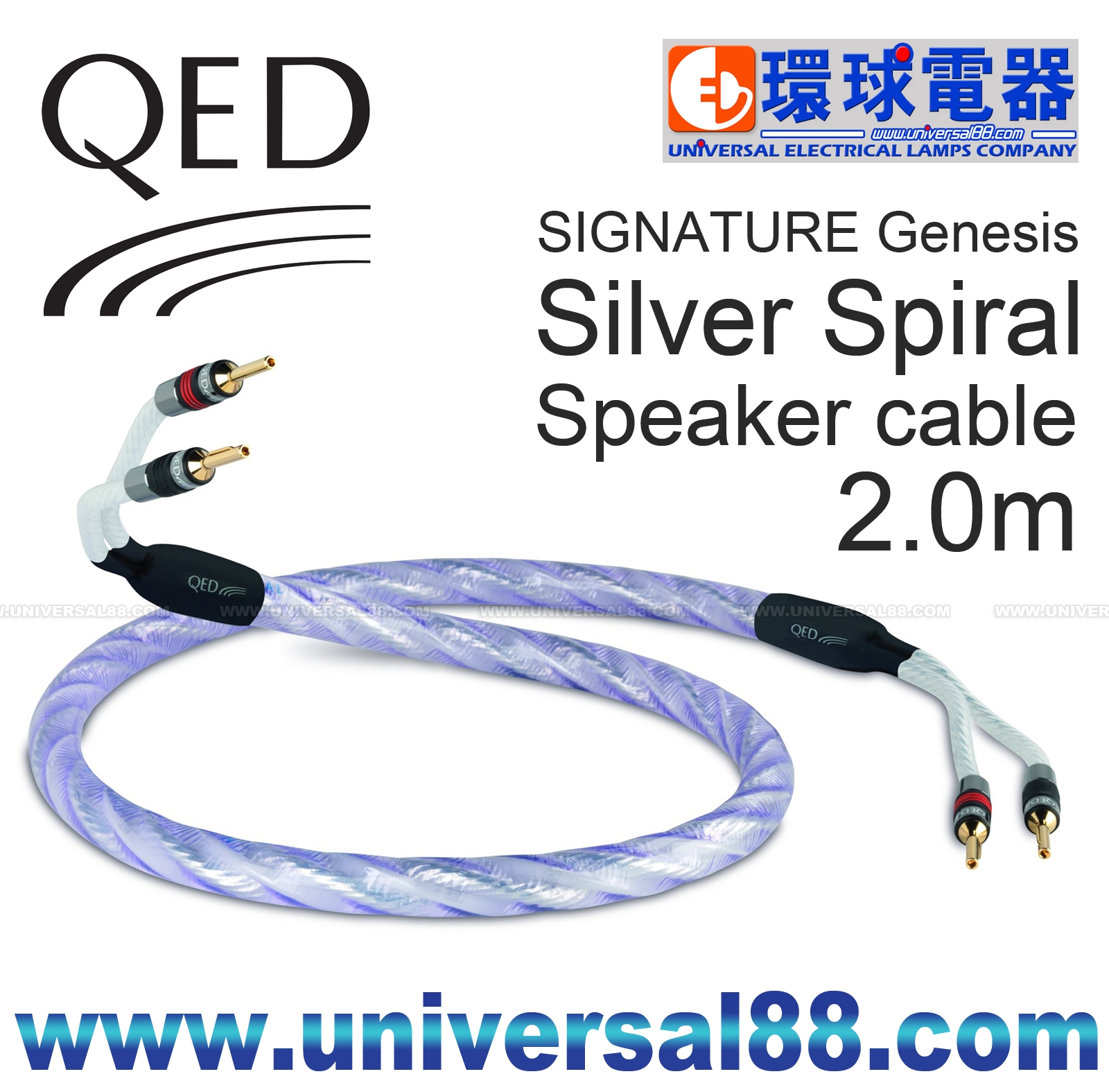

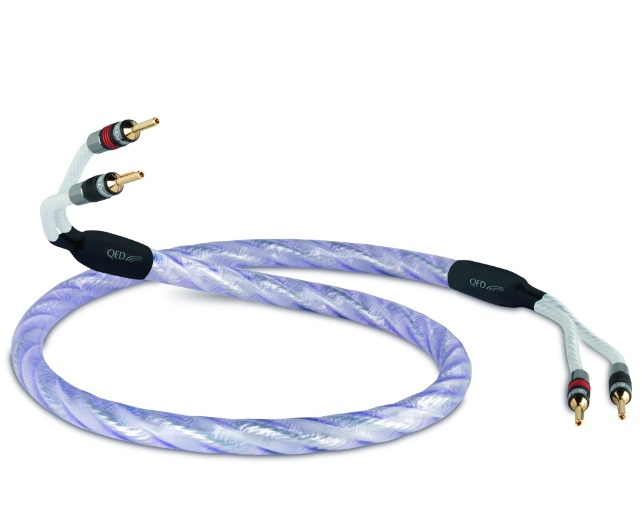

 英國QED Signature Genesis Silver Spiral
 標誌性創世紀銀螺旋
 QED 的發燒級揚聲器電纜
 屢獲殊榮的 Genesis Silver 螺旋電纜是
   揚聲器電纜40多年科學研究和開發的成果
 Silver Spiral 的極低電阻使放大器能夠對其
    驅動的揚聲器發揮出色的控制力, 尤其在低頻下
 這不僅僅是另一根揚聲器電纜, 它還是一種高性能
    音頻組件, 該電纜代表了過去40年QED研究和
    開發的頂峰
 線規: 10 AWG
 鍍銀 99.999% 無氧銅導體
 Aircore™ 技術
 護套外徑: 16.60 mm
 橫截面積: 5.50 mm2
 迴路電阻: 0.006 Ω/m
 電容: 76 pF/m
 電感: 0.46 µH/m
 耗散因數: 0.0070
 推薦用於高階安裝
 絞線直徑: 3.25mm (最小）
 適用於 ABS、金屬和 Maxi Airloc
 AIRCORE TECHNOLOGY:
    橫截面積超過2.5 mm2 的 QED電纜利用空芯技術,
    將多個單獨絕緣的較小芯捆綁在一起以構成更大的 CSA,
    從而消除集膚效應。如果這些導體佈置在聚乙烯的空心
    中心芯周圍, 電纜表現出的自感可以減少到計算預測值
    的一半左右
 QED's audiophile-grade speaker cable
 The award winning Genesis Silver Spiral
    cable is the result of over 40 years of
    scientific research and development into
    speaker cables
 Silver Spiral's exceptionally low resistance
    allows amplifiers to exert outstanding grip
    and control over the speakers they're driving,
    especially at low frequencies.
 This isn't just another speaker cable it's a high
    performance audio component .This  cable
    represents the culmination of QED research
    and development over the past 40 years.
 When supplied factory pre-terminated this is
    fitted with Airloc Metal 4mm Banana Plugs.
 Wire gauge: 10 AWG
 Silver plated 99.999% Oxygen Free Copper conductors
 Aircore™ Technology
 Jacket OD 16.60 mm
 Cross-sectional area: 5.50 mm2
 Loop resistance - 0.006 Ω/m
 Capacitance: 76 pF/m
 Inductance: 0.46 µH/m
 Dissipation factor: 0.0070
 Recommended for high end installations
 Stranded Diameter: 3.25 mm (min)
 Suitable for ABS, Metal & Maxi Airloc
 AIRCORE TECHNOLOGY™
    QED cables above 2.5 mm2 cross sectional
    area utilise air core technology to obviate the
    skin effect by bundling several separately
    insulated smaller cores together to make up
    a larger CSA. If these conductors are arranged
    around a hollow central core of polyethylene
    the self inductance exhibited by the cable can
    be reduced to around half that predicted
    by calculation.

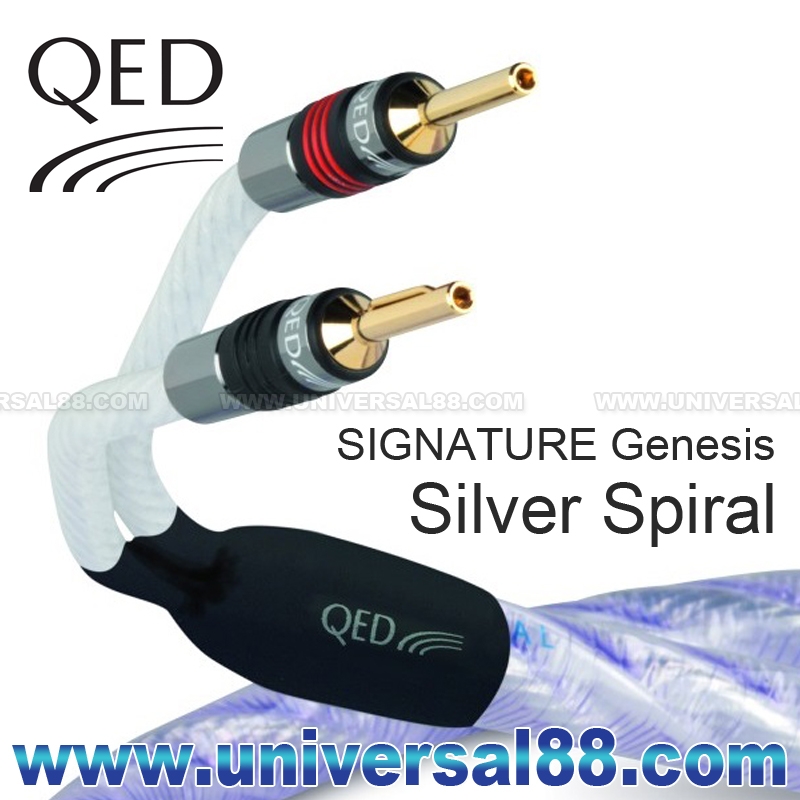

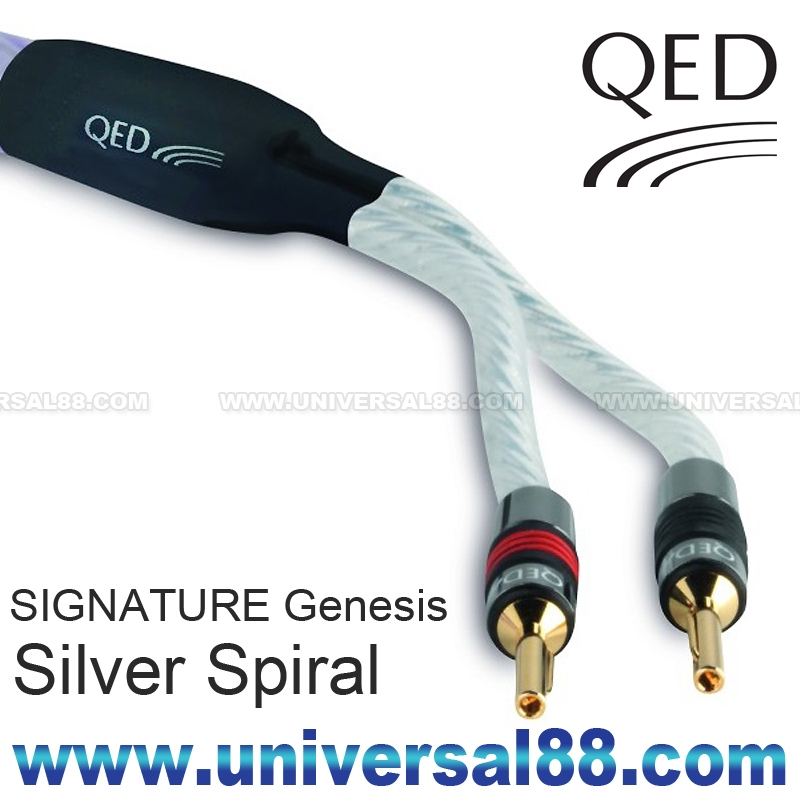

 插頭和鏟子 QED Airloc™  香蕉插頭
 線規 10 AWG
 線長2.m米
 包括2條2.0m (6'尺)喇叭線
 插頭選擇:
    QED Airloc Metal 4mm 金屬殼蕉插(Airloc Metal Banana)
 另有: 2.5m米 (8'尺) 可供選擇
