原廠1年保用
 SVS PB13-Ultra 表現出視聽境界卓越效果,
 來自美國SVSound Subwoofer 有源重低音揚聲器
 13.5"INCH SVS Audio Subwoofer
 美國SVS Subwoofer 13.5" 低音單元揚聲器
 充滿速度感的SVS重低音
 類型: 導向式
 內建擴大器:
    輸出1,000Watts RMS的高品質超重低音揚聲器
    動態峰值: 3,600Watts
 頻率響應: 14Hz~200Hz
 低音單元: 13.5" INCH
 3組3.5"吋直徑高流量前向輻射喇叭口導向管
 Active Subwoofer 主動式超低音喇叭
 嵌入式的橡膠懸浮圈
 高硬度加強的MDF箱體
 低音單元能充分表現重低音聲道所需的重量級低頻
 手工細緻, 流線式設計, 外觀細緻高雅, 品味出眾
 重低音揚聲器13.5"吋 低音單元
 擁有超迷你機身, 天崩地裂般的低頻源源不絕,
    大地震重現眼前
 可拆式網面
 SVS大型尺寸(13.5"吋) 超大口徑的低音單元)音箱,
    用廣泛的組合來表現出最大的力量
 反應出色的13.5" 直徑低音單元喇叭,
    再現有活力充滿速度感的重低音
 內建最大Peak Power 3,600Watts的高效率高功率放大器,
    強而有力
 配備有頻率連續可變低通濾波器和連續可變的類型
    發揮廣泛的相溶性與主揚聲器的電平控制
 裝備LFE(低頻率效果)信號用開關
 提高設置位置的自由度, 配備階段轉換開關
 配備底部的低音反射端口, 以提高低階段的音感
 利用地板的反射形成擴大的聲場
 腳部分有效地吸收振動, 壓抑不要的地板振動
    採用半球形大型橡膠腳墊
 巨大聲響從超低音底部產生, 使重低音發揮得淋漓盡致
 雙RCA插座, 可配合任何環繞處理器, 前級放大器,
    後級放大器或綜合放大器系統使用
 "大錘"STA-1000D能為4歐姆負載提供連續的800W功率
 低通分頻點可連續調整:
    17Hz~200Hz (20Hz)
    14Hz~200Hz (16Hz)
    21Hz~200Hz (密閉模式)
 澎湃刺激感覺, 優雅英式品味
 採用可拔式AC電源線
 保險絲電源插座, 安全方便
 大型橡膠腳墊
 可拆式無共震鋼孤形格紋網罩設計

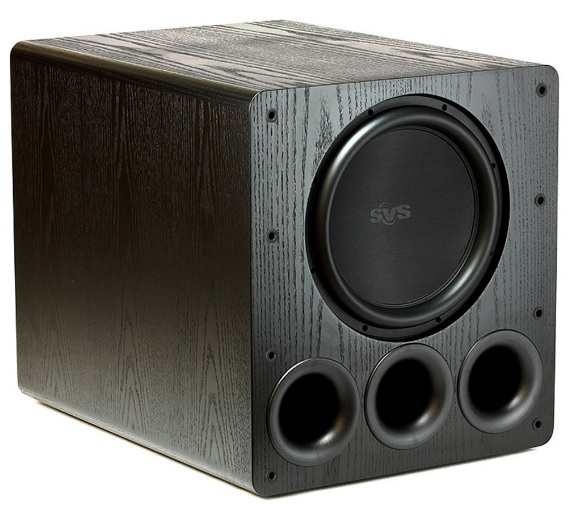

 SVS PB13-Ultra 13.5" Active Subwoofer
   13.5" Extreme performance underhung Ultra driver
 SVS 13.5" extreme performance
    underhung Ultra driver
 SVS custom-tooled die-cast aluminum basket
 Flat-wire, 3" diameter, high-power, high-temp,
    8-layer, aluminum voice coil
 Polyimide impregnated fiberglass former/bobbin
 Dual 9", composite layered, linear roll,
    extreme excursion spiders
 Integrated tinsel leads
 Nickel-plated high-tension spring terminals
 Proprietary injection molded gasket and
    parabolic SBR extreme-excursion surround
 Composite pulp/fiberglass press layered cone
    with stitched surround
 Low carbon 1008 steel components,
    electrophoresis black plating
 Finite Element Analysis (FEA)-optimized
    underhung motor structure for the lowest possible distortion
 Copper shorting sleeve reduces gap induction & distortion,
    and enhances thermal conductivity
 Dual Genox 8H/Y-35 high grade ferrite magnets
 Oversized pole vent for greater cooling and low noise
 STA-1000D Sledge with 1000 watts RMS
    continuous power (3600 watts peak dynamic power)
 High efficiency cool-running Class D switching topology
 Detachable power cord with main power
    switch and ceramic fuse
 RoHS compliant, lead-free construction
    and world-wide safety certifications
 Auto-On / On switch with "green" standby mode

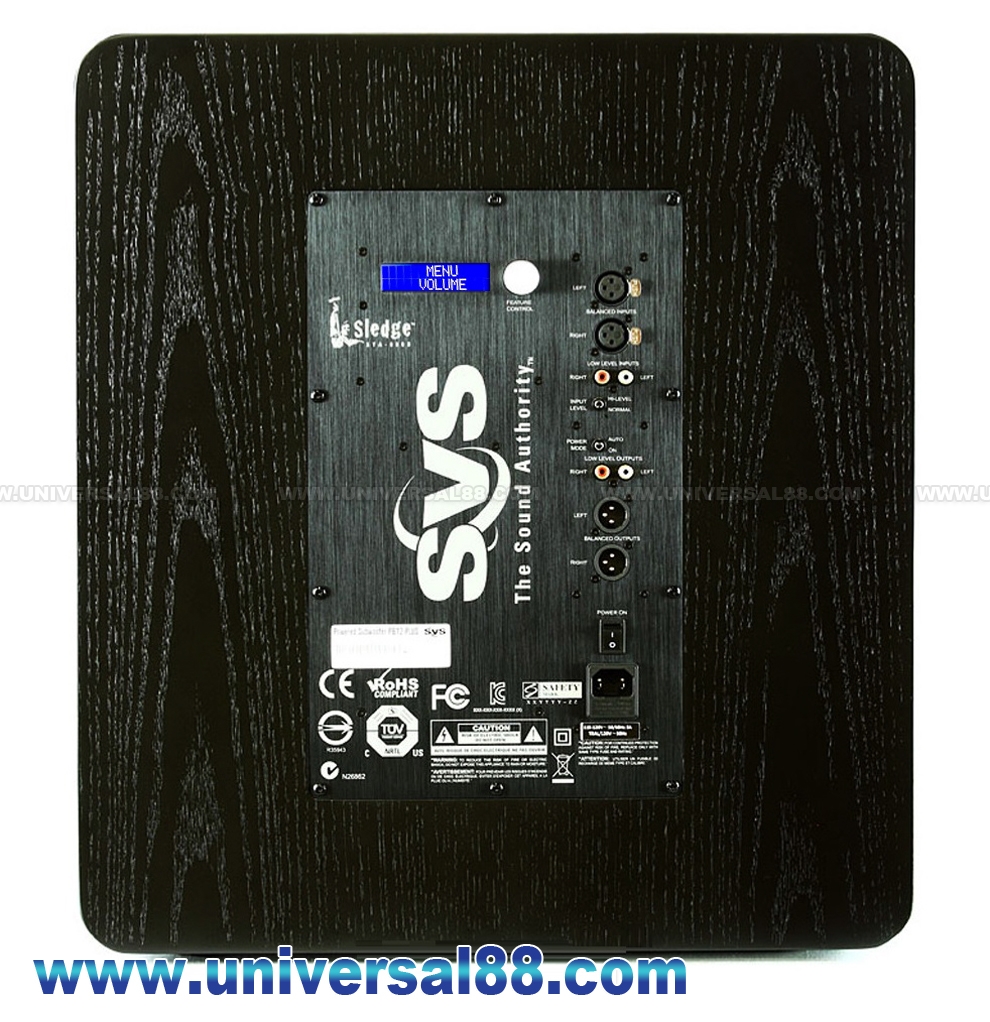

 Stereo line-level RCA and balanced (XLR)
    input/output connections
 Normal and Hi input voltage switch
 Customized EQ and DSP limiter settings
    specifically for the PB13-Ultra
 Variable tuning with 20Hz, 16Hz, and
    Sealed settings to match subwoofer port settings
 Fully adjustable (frequency and slope)
    phase-correct speaker/sub digital crossover
 Intelligent Feature Control (IFC) with bright LCD display
 Two (2) digital PEQs with adjustable frequency,
    cut/boost, and Q values
 Room gain compensation control with
    adjustable frequency and slope
 Adjustable digital delay on main speaker
    line-level outputs to time-align the speakers and subs
 Input impedance - 24 kΩ (unbalanced RCA) /
    22 kΩ (balanced XLR)
 Auto-On / Off switch
 電壓: W220~240V 50/60Hz
 尺寸: W520 / H571 / D759 mm (D without grille)
    (闊17.3" / 高21.3" / 深29.9")
 尺寸: W520 / H571 / D711 mm (D without grille)
    (闊17.3" / 高21.3" / 深28.0")
 重量: 72.0 kg
 顏色: 黑色木皮 (Black)
 附有3個直徑達3"吋高密度海綿製倒相管塞
