> 影音產品-Audio&Video > 膽機Hi-Fi / CD DAC解碼 > AUDIOLAB M-DAC+ USB DAC 數位類比轉換器

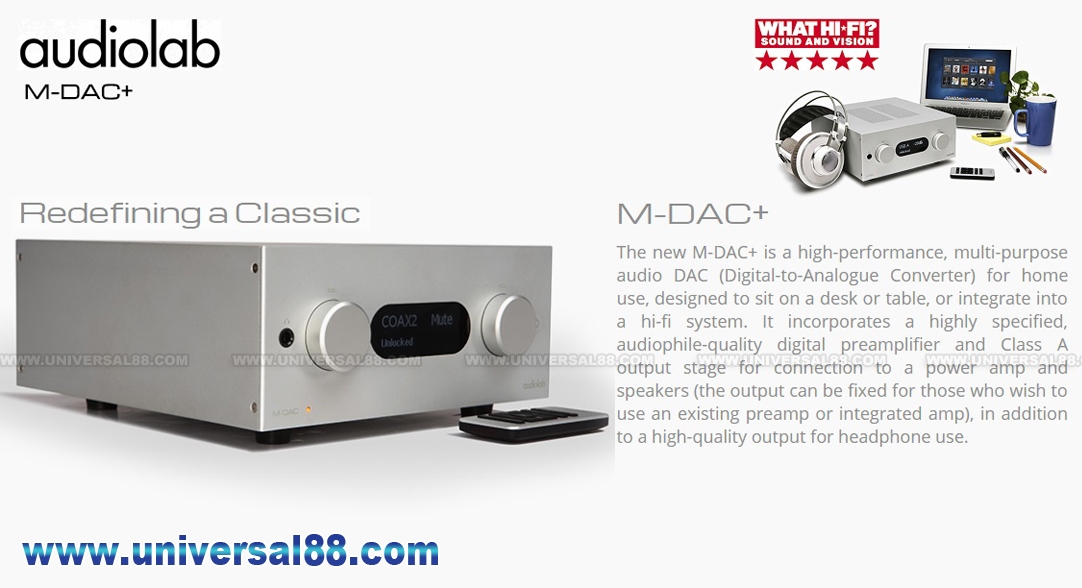

AUDIOLAB M-DAC+
USB DAC 數位類比轉換器


(2組同軸數碼輸入及1組輸出)
(2組光纖數碼輸入及1組輸出)
(Support 32-bit / 384kHz)
(ESS Sabre32 9018 chip)
分期付款 :
每月HKD $293 (共24個月)
LASTUPDATE: 02-02-2024

HKD $9,200
   {最後清貨}
   {少量現貨}

HKD $6,500
產品備註 :



 原廠一年保用
 英國AudioLab M-DAC+ USB DAC 數位類比轉換器
 The new M-DAC+ is a high-performance,
    multi-purpose audio DAC (Digital-to-Analogue
    Converter) for home use, designed to sit on a
    desk or table, or integrate into a hi-fi system

 It incorporates a highly specified,
    audiophile-quality digital preamplifier and
    Class A output stage for connection to a
    power amp and speakers (the output can be
    fixed for those who wish to use an existing
    preamp or integrated amp), in addition to
    a high-quality output for headphone use

 General description: Digital-to-Analogue Converter
 DAC: ESS Sabre32 9018 chip
 Sampling Rate:
    24-bit / 192kHz (Optical, Coaxial, AES)
    32-bit / 384kHz (USB)
    2.8MHz (DSD64), 5.6MHz (DSD128),
    11.2MHz (DSD256)

 Output Voltage Balanced: 4.5V RMS
 Unbalanced: 2.25V RMS
 Output Impedance Balanced: 20Ω
 Unbalanced: 10Ω
 THD (1kHz 0dB 20Hz - 20kHz A wtd) <0.002%
 Frequency Response:
    20Hz - 20KHz (± 0.2dB)
 Signal to Noise Ratio:
    RCA: > -115dB, XLR: > -120dB
 Dynamic Range:
    RCA: > 115dB, XLR: > 120dB
 Crosstalk RCA: > 120dB, XLR: > 130dB
 2組同軸數碼輸入(Coaxial Input)
 2組光纖數碼輸入(Optical Input)
 1組同軸數碼輸出(Coaxial Output)
 1組光纖數碼輸出(Optical Output)
 2組平衡輸出(XLR Output)
 1組AES/EBU
 1組USB for PC USB
 1組USB for iPod/iPhone/iPad
 尺寸: W247 / H114 / 292mm
 重量: 3.7kg
 Compatible with 2 x AudioLab 8300MB
